Details
Competition winch specifically designed for use in classes 10R, EC12 and A.
3,6 revolutions per second with a stall torque of 19 kg-cm.
Power from 4.5 to 9 optimized for LiPo batteries from 7.4 V.
Gears made of high-tech polymer CarbonHF™ reinforced with carbon fiber, fully on ball bearings.
Double System Drum™ that allows you to use either as Standard Drum or as Self Tension-ing Drum.
Microprocessor high-resolution magnetic encoder and programming interface ProCard™ with LCD display.
Suitable classes:
- 10R standard
- EC12 competition
- A competition
Suitable classes:
- 10R standard
- EC12 competition
- A competition
The standard equipment includes:
- Winch Encoder System™, complete with battery cables (1 mm2 - 17 AWG - length 300 mm), radio control cable with pins compatible with Graupner Tx-Rx - JR - Futaba - Hitec (length 300 mm), power wire with bridge (length 300 mm), prepared for control switch (optional).
- Double System Drum™ Ø 32 mm with washer and stainless steel button head cap screws M3x20 TBEI, spring for right rotation, left rotation spring, locking pins.
The special Double System Drum™ diameter 32 mm allows its use both as Self Tensioning Drum (drum which allows to tighten the winch pull sheet without com-pensation spring) and as Standard Drum (drum without self-tensioning springs). - Hull mounting stainless steel button head cap screws M3x10 mm with washer.
- Bridge.

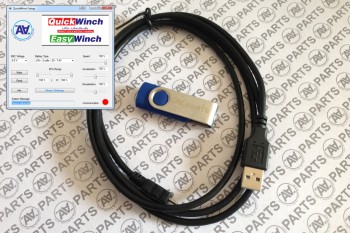

- USB pen containing the user manual and maintenance, warranty and various technical documents.
- Quick access manual.

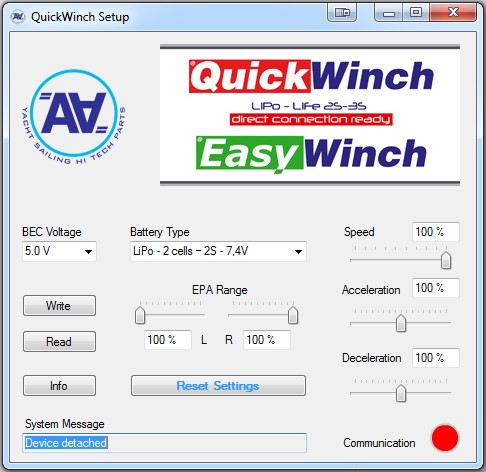

- Standard programming interface Pro-Card™ that allows editing or viewing of standard parameters stored directly to allow the immediate use on the boat.
Additional Information
| Product code | 0280.03 |
|---|---|
| Weight (g) | 50 |
| Manufactured by: | AA-Parts |
| Available from: | No |
| Class | No |
